Marim | Tutorial

Welcome

Welcome to the Marim tutorial! Follow the steps below to develop your first data service.

Database

This tutorial makes use of a sample database. To execute it, type the command

docker run --rm --network host marimplatform/dvdrental

Project

A Marim project, i.e., a set of specification files, is simply a directory. Therefore, create the tutorial project typing the command

mkdir ./dvdrental

Specification

Create the ./dvdrental/dvdrental.marim file with the specification below.


table Category                       // Declares the structure of a query result
    column Id         type integer   // Declares a column of a query result
    column Name       type string    // Supported datatypes are date, decimal, integer, string, time and timestamp
    column LastUpdate type timestamp

source DvdRental                                          // Declares a JDBC data source
    dialect  postgresql                                   // Supported dialects are calcite, db2, mysql, oracle, postgresql, sqlserver and teradata
    url      "jdbc:postgresql://localhost:5432/dvdrental" // JDBC URL with which the service will connect to the database
    property "user"     "postgres"                        // The property keyword sets a JDBC driver property value
    property "password" "postgres"                        // All JDBC drivers support the properties "user" and "password"

query Categories                          // Declares a query
    result table Category                 // Declares the query result structure

    source DvdRental                      // Declares the data source in which the service will execute the query

    statement                             // The query statement is a single or multiline string
        "select category_id as Id,
                name        as Name,
                last_update as LastUpdate
           from category"

query Category
    parameter Id schema type integer not null  // Declares a query parameter and its schema, i.e., its type, nullability etc.

    result table Category

    source DvdRental

    statement
        "select category_id as Id,
                name        as Name,
                last_update as LastUpdate
           from category
          where category_id = (" Id ")"   // Parameterized query statements may refer its parameters

Service execution

To execute the service, type the command

docker run --rm --network host -v $(pwd)/dvdrental:/marim marimplatform/service

which will result in

  __  __            _
 |  \/  |          (_)
 | \  / | __ _ _ __ _ _ __ ___
 | |\/| |/ _` | '__| | '_ ` _ \
 | |  | | (_| | |  | | | | | | |
 |_|  |_|\__,_|_|  |_|_| |_| |_| Data Services Platform

                                         1.0.0-SNAPSHOT
                          https://www.marimplatform.dev

                        Copyright (C) 2022 Saulo Araujo
                                    All rights reserved

2023-04-09T13:37:13.530Z  INFO 1 --- [           main] dev.marimplatform.ServiceApplication     : Starting ServiceApplication using Java 17.0.6 with PID 1 (/app/classes started by root in /)
2023-04-09T13:37:13.538Z  INFO 1 --- [           main] dev.marimplatform.ServiceApplication     : No active profile set, falling back to 1 default profile: "default"
2023-04-09T13:37:17.333Z  INFO 1 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8080 (http)
2023-04-09T13:37:17.356Z  INFO 1 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2023-04-09T13:37:17.357Z  INFO 1 --- [           main] o.apache.catalina.core.StandardEngine    : Starting Servlet engine: [Apache Tomcat/10.1.7]
2023-04-09T13:37:17.748Z  INFO 1 --- [           main] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
2023-04-09T13:37:17.753Z  INFO 1 --- [           main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 3941 ms
2023-04-09T13:37:24.263Z  INFO 1 --- [           main] o.s.b.a.e.web.EndpointLinksResolver      : Exposing 3 endpoint(s) beneath base path '/actuator'
2023-04-09T13:37:24.563Z  INFO 1 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8080 (http) with context path ''
2023-04-09T13:37:24.668Z  INFO 1 --- [           main] dev.marimplatform.ServiceApplication     : Started ServiceApplication in 12.349 seconds (process running for 13.697)

Query execution

Marim maps queries to URLs. Query identifiers become URL suffixes. Thus, to execute a query, send a HTTP request to its URL. For example, to execute the query Categories, send a request to the URL http://localhost:8080/rest/Categories. To send such request with curl, type the command

curl http://localhost:8080/rest/Categories

The service will respond

[{"Id":1,"Name":"Action","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":2,"Name":"Animation","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":3,"Name":"Children","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":4,"Name":"Classics","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":5,"Name":"Comedy","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":6,"Name":"Documentary","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":7,"Name":"Drama","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":8,"Name":"Family","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":9,"Name":"Foreign","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":10,"Name":"Games","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":11,"Name":"Horror","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":12,"Name":"Music","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":13,"Name":"New","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":14,"Name":"Sci-Fi","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":15,"Name":"Sports","LastUpdate":"2006-02-15T09:46:27Z"},{"Id":16,"Name":"Travel","LastUpdate":"2006-02-15T09:46:27Z"}]

Pretty-print

To reduce response length, Marim does not pretty-print responses, but you can easily pretty-print JSON responses piping to jq. For instance, the command

curl http://localhost:8080/rest/Categories | jq

results in

[
  {
    "Id": 1,
    "Name": "Action",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 2,
    "Name": "Animation",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 3,
    "Name": "Children",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 4,
    "Name": "Classics",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 5,
    "Name": "Comedy",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 6,
    "Name": "Documentary",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 7,
    "Name": "Drama",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 8,
    "Name": "Family",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 9,
    "Name": "Foreign",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 10,
    "Name": "Games",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 11,
    "Name": "Horror",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 12,
    "Name": "Music",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 13,
    "Name": "New",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 14,
    "Name": "Sci-Fi",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 15,
    "Name": "Sports",
    "LastUpdate": "2006-02-15T09:46:27Z"
  },
  {
    "Id": 16,
    "Name": "Travel",
    "LastUpdate": "2006-02-15T09:46:27Z"
  }
]

CSV

Set the Accept HTTP request header to text/csv to get CSV responses. For example, the command

curl -v -H "Accept: text/csv" http://localhost:8080/rest/Categories

results in

Id,Name,LastUpdate
1,Action,2006-02-15T09:46:27Z
2,Animation,2006-02-15T09:46:27Z
3,Children,2006-02-15T09:46:27Z
4,Classics,2006-02-15T09:46:27Z
5,Comedy,2006-02-15T09:46:27Z
6,Documentary,2006-02-15T09:46:27Z
7,Drama,2006-02-15T09:46:27Z
8,Family,2006-02-15T09:46:27Z
9,Foreign,2006-02-15T09:46:27Z
10,Games,2006-02-15T09:46:27Z
11,Horror,2006-02-15T09:46:27Z
12,Music,2006-02-15T09:46:27Z
13,New,2006-02-15T09:46:27Z
14,Sci-Fi,2006-02-15T09:46:27Z
15,Sports,2006-02-15T09:46:27Z
16,Travel,2006-02-15T09:46:27Z

Default parameters

By default, every Marim data service URL accepts the following parameters:

_select - names of the properties/columns the response will have;
_filter - RSQL predicate the response elements must satisfy;
_orderby - response sort criteria;
_skip - number of elements that will be excluded from the response start;
_top - maximum number of elements the response will have.

_select

The _select parameter allows one to specify which property/column names the response will include. Its value must be a comma-separated list of property/column names. For instance, the command

curl -H "Accept: text/csv" http://localhost:8080/rest/Categories?_select=Id,Name

results in

Id,Name
1,Action
2,Animation
3,Children
4,Classics
5,Comedy
6,Documentary
7,Drama
8,Family
9,Foreign
10,Games
11,Horror
12,Music
13,New
14,Sci-Fi
15,Sports
16,Travel

_filter

The _filter parameter allows one to specify which elements the response will include. Its value must be a RSQL expression. For example, the command

curl -H "Accept: text/csv" http://localhost:8080/rest/Categories?_filter=Name=gt=Games

results in

Id,Name,LastUpdate
11,Horror,2006-02-15T09:46:27Z
12,Music,2006-02-15T09:46:27Z
13,New,2006-02-15T09:46:27Z
14,Sci-Fi,2006-02-15T09:46:27Z
15,Sports,2006-02-15T09:46:27Z
16,Travel,2006-02-15T09:46:27Z

_orderby

Through the _orderby parameter, one can specify how the service will sort the response. Its value must be a comma-separated list of sort criterias, i.e., a column name and a sort direction (asc or desc) separated by a white space. For instance, the command

curl -H "Accept: text/csv" http://localhost:8080/rest/Categories?_orderby=Name%20desc

results in

Id,Name,LastUpdate
16,Travel,2006-02-15T09:46:27Z
15,Sports,2006-02-15T09:46:27Z
14,Sci-Fi,2006-02-15T09:46:27Z
13,New,2006-02-15T09:46:27Z
12,Music,2006-02-15T09:46:27Z
11,Horror,2006-02-15T09:46:27Z
10,Games,2006-02-15T09:46:27Z
9,Foreign,2006-02-15T09:46:27Z
8,Family,2006-02-15T09:46:27Z
7,Drama,2006-02-15T09:46:27Z
6,Documentary,2006-02-15T09:46:27Z
5,Comedy,2006-02-15T09:46:27Z
4,Classics,2006-02-15T09:46:27Z
3,Children,2006-02-15T09:46:27Z
2,Animation,2006-02-15T09:46:27Z
1,Action,2006-02-15T09:46:27Z

_skip

The _skip parameter allows one to specfy how many elements will be excluded from the response start. Its value must be a integer greater than or equal to zero. For example, the command

curl -H "Accept: text/csv" http://localhost:8080/rest/Categories?_skip=1

results in

Id,Name,LastUpdate
2,Animation,2006-02-15T09:46:27Z
3,Children,2006-02-15T09:46:27Z
4,Classics,2006-02-15T09:46:27Z
5,Comedy,2006-02-15T09:46:27Z
6,Documentary,2006-02-15T09:46:27Z
7,Drama,2006-02-15T09:46:27Z
8,Family,2006-02-15T09:46:27Z
9,Foreign,2006-02-15T09:46:27Z
10,Games,2006-02-15T09:46:27Z
11,Horror,2006-02-15T09:46:27Z
12,Music,2006-02-15T09:46:27Z
13,New,2006-02-15T09:46:27Z
14,Sci-Fi,2006-02-15T09:46:27Z
15,Sports,2006-02-15T09:46:27Z
16,Travel,2006-02-15T09:46:27Z

_top

The _top parameter allows one to specfy the maximum number of elements the response will have. Its value must be a integer greater than zero. For instance, the command

curl -H "Accept: text/csv" http://localhost:8080/rest/Categories?_top=1

results in

Id,Name,LastUpdate
1,Action,2006-02-15T09:46:27Z

OpenAPI

Request the service OpenAPI specification typing the command

curl http://localhost:8080/openapi

The service will respond

{
  "openapi" : "3.0.1",
  "servers" : [ {
    "url" : "http://localhost:8080/rest"
  } ],
  "paths" : {
    "/Categories" : {
      "get" : {
        "tags" : [ "Categories" ],
        "responses" : {
          "200" : {
            "description" : "OK",
            "content" : {
              "application/json" : {
                "schema" : {
                  "type" : "array",
                  "items" : {
                    "type" : "object",
                    "properties" : {
                      "Id" : {
                        "type" : "integer",
                        "format" : "int64"
                      },
                      "Name" : {
                        "type" : "string"
                      },
                      "LastUpdate" : {
                        "type" : "string",
                        "format" : "date-time"
                      }
                    }
                  }
                }
              },
              "text/csv" : { }
            }
          },
          "400" : {
            "description" : "BAD_REQUEST",
            "content" : {
              "text/plain" : {
                "schema" : {
                  "type" : "string"
                }
              }
            }
          },
          "500" : {
            "description" : "INTERNAL_SERVER_ERROR",
            "content" : {
              "text/plain" : {
                "schema" : {
                  "type" : "string"
                }
              }
            }
          }
        }
      },
      "post" : {
        "tags" : [ "Categories" ],
        "responses" : {
          "200" : {
            "description" : "OK",
            "content" : {
              "application/json" : {
                "schema" : {
                  "type" : "array",
                  "items" : {
                    "type" : "object",
                    "properties" : {
                      "Id" : {
                        "type" : "integer",
                        "format" : "int64"
                      },
                      "Name" : {
                        "type" : "string"
                      },
                      "LastUpdate" : {
                        "type" : "string",
                        "format" : "date-time"
                      }
                    }
                  }
                }
              },
              "text/csv" : { }
            }
          },
          "400" : {
            "description" : "BAD_REQUEST",
            "content" : {
              "text/plain" : {
                "schema" : {
                  "type" : "string"
                }
              }
            }
          },
          "500" : {
            "description" : "INTERNAL_SERVER_ERROR",
            "content" : {
              "text/plain" : {
                "schema" : {
                  "type" : "string"
                }
              }
            }
          }
        }
      },
      "parameters" : [ {
        "name" : "$select",
        "in" : "query",
        "style" : "form",
        "explode" : false,
        "schema" : {
          "type" : "array",
          "items" : {
            "type" : "string",
            "enum" : [ "Id", "Name", "LastUpdate" ]
          }
        }
      }, {
        "name" : "$filter",
        "in" : "query",
        "schema" : {
          "type" : "string"
        }
      }, {
        "name" : "$orderby",
        "in" : "query",
        "style" : "form",
        "explode" : false,
        "schema" : {
          "type" : "array",
          "items" : {
            "type" : "string",
            "enum" : [ "Id asc", "Id desc", "Name asc", "Name desc", "LastUpdate asc", "LastUpdate desc" ]
          }
        }
      }, {
        "name" : "$skip",
        "in" : "query",
        "schema" : {
          "type" : "integer",
          "format" : "int64",
          "maximum" : 9223372036854775807,
          "minimum" : 0
        }
      }, {
        "name" : "$top",
        "in" : "query",
        "schema" : {
          "type" : "integer",
          "format" : "int32",
          "maximum" : 2147483647,
          "minimum" : 1
        }
      } ]
    },
    "/Category" : {
      "get" : {
        "tags" : [ "Category" ],
        "responses" : {
          "200" : {
            "description" : "OK",
            "content" : {
              "application/json" : {
                "schema" : {
                  "type" : "array",
                  "items" : {
                    "type" : "object",
                    "properties" : {
                      "Id" : {
                        "type" : "integer",
                        "format" : "int64"
                      },
                      "Name" : {
                        "type" : "string"
                      },
                      "LastUpdate" : {
                        "type" : "string",
                        "format" : "date-time"
                      }
                    }
                  }
                }
              },
              "text/csv" : { }
            }
          },
          "400" : {
            "description" : "BAD_REQUEST",
            "content" : {
              "text/plain" : {
                "schema" : {
                  "type" : "string"
                }
              }
            }
          },
          "500" : {
            "description" : "INTERNAL_SERVER_ERROR",
            "content" : {
              "text/plain" : {
                "schema" : {
                  "type" : "string"
                }
              }
            }
          }
        }
      },
      "post" : {
        "tags" : [ "Category" ],
        "responses" : {
          "200" : {
            "description" : "OK",
            "content" : {
              "application/json" : {
                "schema" : {
                  "type" : "array",
                  "items" : {
                    "type" : "object",
                    "properties" : {
                      "Id" : {
                        "type" : "integer",
                        "format" : "int64"
                      },
                      "Name" : {
                        "type" : "string"
                      },
                      "LastUpdate" : {
                        "type" : "string",
                        "format" : "date-time"
                      }
                    }
                  }
                }
              },
              "text/csv" : { }
            }
          },
          "400" : {
            "description" : "BAD_REQUEST",
            "content" : {
              "text/plain" : {
                "schema" : {
                  "type" : "string"
                }
              }
            }
          },
          "500" : {
            "description" : "INTERNAL_SERVER_ERROR",
            "content" : {
              "text/plain" : {
                "schema" : {
                  "type" : "string"
                }
              }
            }
          }
        }
      },
      "parameters" : [ {
        "name" : "Id",
        "in" : "query",
        "required" : true,
        "explode" : false,
        "schema" : {
          "type" : "integer",
          "format" : "int64"
        }
      }, {
        "name" : "$select",
        "in" : "query",
        "style" : "form",
        "explode" : false,
        "schema" : {
          "type" : "array",
          "items" : {
            "type" : "string",
            "enum" : [ "Id", "Name", "LastUpdate" ]
          }
        }
      }, {
        "name" : "$filter",
        "in" : "query",
        "schema" : {
          "type" : "string"
        }
      }, {
        "name" : "$orderby",
        "in" : "query",
        "style" : "form",
        "explode" : false,
        "schema" : {
          "type" : "array",
          "items" : {
            "type" : "string",
            "enum" : [ "Id asc", "Id desc", "Name asc", "Name desc", "LastUpdate asc", "LastUpdate desc" ]
          }
        }
      }, {
        "name" : "$skip",
        "in" : "query",
        "schema" : {
          "type" : "integer",
          "format" : "int64",
          "maximum" : 9223372036854775807,
          "minimum" : 0
        }
      }, {
        "name" : "$top",
        "in" : "query",
        "schema" : {
          "type" : "integer",
          "format" : "int32",
          "maximum" : 2147483647,
          "minimum" : 1
        }
      } ]
    }
  }
}

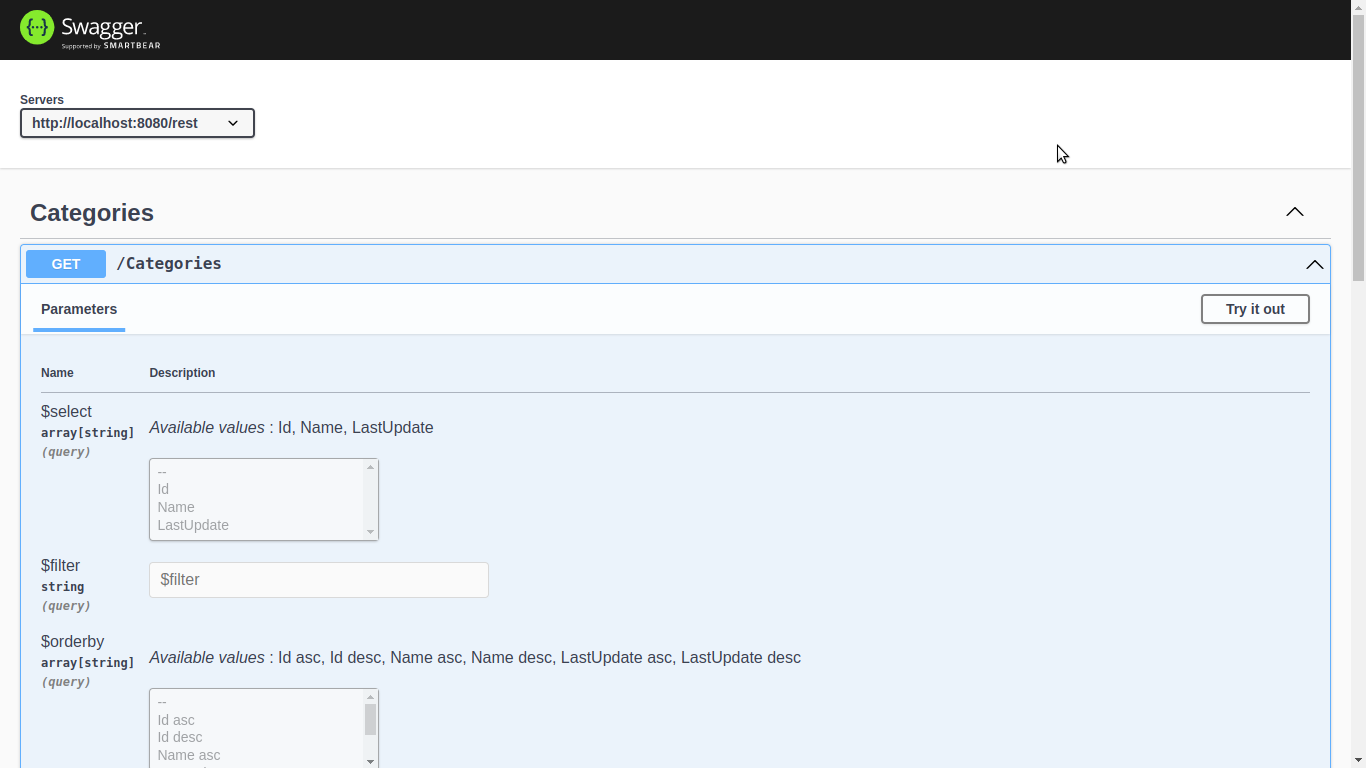

Swagger UI

Open the address http://localhost:8080/swagger-ui in a browser to visualize the service OpenAPI specification and send requests to it in a more human-friendly way through the embedded Swagger UI application.

Next steps

Read the manual to learn more about Marim and start developing your own data services!

Marim Data Services Platform

Tutorial

Welcome

Database

Project

Specification

Service execution

Query execution

Pretty-print

CSV

Default parameters

_select

_filter

_orderby

_skip

_top

OpenAPI

Swagger UI

Next steps
